QLF5000 Cosmetic Product Liquid with Suspended Solids Application and New Condition High Speed Dissolver Mixer

FOB Reference Price:Get Latest Price
$3,000.00 - $80,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
QLF
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
IDA
Voltage:
220V/380V
Certification:
CE/ ISO
Type:
Pulverizer
Product Type:
Cosmetic,class glue,adhensive, silicone sealant
Dimension(L*W*H):
Customizable
Range of Spindle Speed(r.p.m):
0 - 1500
Power (kW):
30
Application:
Medicine Processing, Chemicals Processing, Food Processing, Cosmetic,class glue,adhensive, silicone sealant
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High Productivity
Output (kg/h):
3 - 3000
Weight (KG):
1000 KG
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Cylinder volume:
5-5000L
Feeding volume:
3-3000L
Motor Power:
1.5x3-55x3 KW
Revolution Speed:
23-42 rpm
Rotation speed:
0-980x2-0-1500x2 rpm
Vacuum:
≤-0.098 Mpa
Supply Ability
Supply Ability:
40 Unit/Units per Month
Packaging & Delivery
Packaging Details
The machine will be covered with anti-abrasion film and then packed in plywood cases.
Port
shanghai

Multi-function powerful dispersion mixer is a hydraulic system in the single-axis mixer on the basis of the development of a strong dispersion and mixing function of the product. The product of high viscosity and thixotropic materials have good adaptability, a variety of mixing methods optional, conventional such as anchor,spiral,blade, butterfly and frame, etc, scattered and agitation can be carried out at the same time, strong adaptability, and according to customer material characteristics and production process requirements for non-standard custom, the design of the best mixing form.
Material viscosity: ≤1, 500,000cps
Production capacity:50-2, 000L.
Material:Material viscosity below 1,000,000cps, solid content below 90% of the various slurry, such as battery slurry, solder paste, creamic slurry, silicone ink, sealant, structural adhesive,soft cream, jam and so on more than a variety of materials.

Working Principle

The stirring blade is rotated in the fixed direction driven by the power unit, during the rotation, the driving material is axially rotated and radially rotated. Mixer within the material, while the existence of axial movement and circular motion, which at the same time there are shear mixing and diffusion mixing several forms of mixing. This equipment can effectively stir and mix materials quickly. In the stirring paddle with a scraper, close to the barrel wall wiping, scraper with the agitator when the barrel of the material completely scraped off, so that the barrel wall without retention material, while improving the mixing effect.
Dispersed disk through high-speed operation, so that the material was ring flow, resulting in a strong whirlpool, was spiral down to the bottom of the eddy current. The particles produce a strong shear impact and friction, to achieve rapid dispersion, dissolution function. Mixing plate through the circular motion, resulting in a better radial role, to speed up the material circulation, improve the dispersion efficiency.
Hydraulic lifting mixer through the hydraulic pump to drive the hydraulic plunger movements, driving the entire transmission and working group movements.
Main Features
1,High mixing efficiency,wide,range of applications.

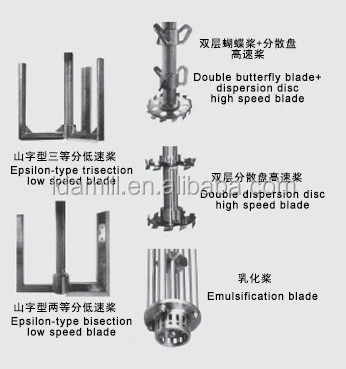

Multi-axis multi-function powerfull dispersion mixer by the scraping wall stirrer and high speed disperser composition,with a strong shear effect and high mixing efficiency,multiple sets of agitator at the purpose of rapid mixing; stirrer is generally divided into anchor and butterfly two kinds, for process requirements can be designed the best mixing form.
2,Easy to operate safe.
Equipment through the cylinder as a lift actuator, with the control valve to control the working head to rise, stop, drop, simple operation, high stability; stirring paddle and spindle between the fixed bolt fixed, easy to replace the replacement, easy to clean;(belt, hand, pneumatic), it can quickly fix the mixing bucket to prevent the displacement of the barrel in the work caused by security incidents.
3,Material non-stick wall, the material clean.
In the blender equipped with a scraper, close to the barrel wall wiping, barrel wall by the car after finishing, and then polished by automatic polishing machine to ensure that the activities of the scraper in the rotation of the barrel of the material completely scraped off the barrel wall without retention material, to improve the mixing effect.
4,Non- standard strong.
Can be customized various types of non-standard products, such as explosion-proof, vacuum type, heating type, with PLC control intelligent,material can be customized according to requirements SS316L stainless steel or spray special materials.
5,Good seal and de-foaming effect, it can make into vacuum type.

TypeQLF-5QLF-300QLF-500QLF-1000QLF-2000QLF-5000
Cylinder volume L5300500100020005000
Feeding volume L318030060012003000
Motor power Kw1.5x311x315x330x337x355x3
Revolution speed r/min333333232323
Rotatin speed r/min0-1500x2 0-1500x20-980x20-980x20-980x20-980x2
Vacuum Mpa-0.098-0.098-0.098-0.098-0.098-0.098


Coating:Water-based coating,Solvent-based coating,Decorative coating,Latex paint;
Paint:Car paint,Finish paint,Wood paint,Industrial paint;
Ink:Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment:Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials:Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry:chocolate syrup,paste etc.
Pesticide:pesticide suspension ,EC,EW,ME
Daily Chemical Industry:cosmetics,luquid soap,shower gel,liquid detergent etc;
Biological Medicine:algae cell framentation,microbiological functional materials;
Nano Materials:metal oxide,magnetic materials,paper industry,optoelectronic industry.


IDA machinery is a professional engaged in fluid & powder equipment Research and development , design, manufacturing, sales and service as one of the integrated high-tech enterprises. Our company's main products are dispersing equipment, mixing equipment,grinding equipment, emulsifying equipment and complete sets of production lines, to provide our customers with industrial grade high standard of professional products and quality services. Widely used in industries and fields as follows : Paint & coatings, inks, dyes and pigments, flavors and fragrances, food, papermaking chemicals, medicine, cosmetics, pesticide, resin, rubber, lithium battery materials, building materials, lubricants, adhesives, surfactants, hard material & ceramic materials, electronic chemicals, oil field chemicals. IDA machinery for various process has a variety of grinding equipment has to meet your special requirements for products and processes are different. Many domestic and foreign customers choose us because IDA machinery technology is mature and reliable and advanced, with the rest assured!

Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.

On-Sale Service: IDA factory will manufacture the good quality machine.

After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.

All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
