With bearing bush Three roll rubber mixing machine with CE certification

FOB Reference Price:Get Latest Price
$1,000.00 - $30,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
DS/ES
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Place of Origin:
Jiangsu, China
Brand Name:
IDA
Voltage:
customizable
Certification:
CE ISO
Type:
Grinder
Product Type:
Paste,cosemetic,pigment.etc
Dimension(L*W*H):
500*400*400--1060*920*1060
Range of Spindle Speed(r.p.m):
0 - 400
Power (kW):
3
Application:
Medicine Processing, Chemicals Processing, CNT, High value metal paste, New Ceramic material, Electronics conductive paste,cosmetic,pigment,Solar pasty,etc.
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High Safety Level,Competitive Price,High-accuracy,High Productivity
Output (kg/h):
0.5 - 50
Weight (KG):
380 KG
Feeding Size (mm):
mm
Output Size (mesh):
5 - 200
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Roller diameter:
50-120mm
Length of roller:
150-450mm
Ratio of speed:
1:3:9
Output:
0.5-50 L/h
Motor power:
0.75-3kw
Overall dimension:
500*400*400--1060*920*1060mm
Weight:
50-380kg
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
The machine will be covered with anti-abrasion film and then packed in plywood cases.
Port
shanghai

1Product Description.jpg

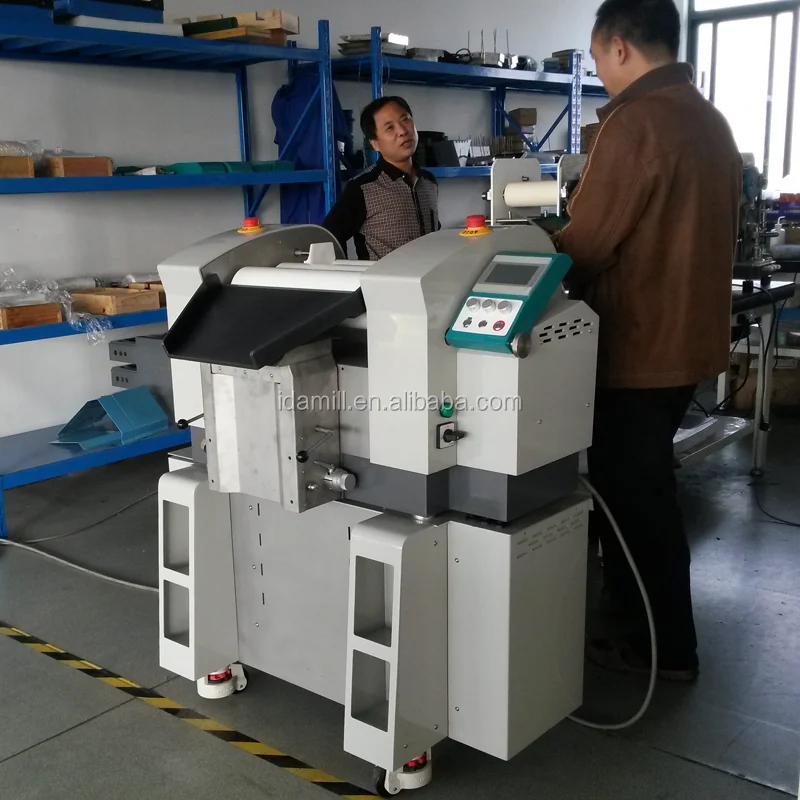

IDA Superfine series are high performance three roller mill, which created for hyper precise, narrow particle size distribution. She has an unparalleled reproducibility in nano grinding, which is best choice for Nano new material, Metal paste, Ceramic slurry, Electronics slurry, Cosmetics.


Working principle

The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the front roller rotates forward while the rear roller rotates backward. The speed of front roller is quicker while speed of rear roller is slower. The middle roller is fixed, and the front and rear rollers are mounted on the slide with spring device. Adjust the distance between three rollers by adjusting the hand wheel. The material discharged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size Then the material are rolled out by the fast roll(Roll rotates at high speed). The scrapper at the end of the fast roller separate material from the roller and fall into the collection barrels. Since it produces a lot of heat in the grinding process, the center of each roller is hollow. Input water for cooling to ensure finished products with good quality.

Main Features

1. Gap mode displays the gap distance value set by user and the actual stress values. (Unit: micron and Newton/ mm)

2. Clean mode and reverse function ensure the safety of operation.

3. Roller speed and distance can be set as a parameter (under any mode), up to 3,000 groups data.

4. Siemens PLC control brings easy and visual operation.



2Product Paramenters.jpg

Model

Superfine DS50

Superfine DS80

Superfine ES80

Superfine DS120

Superfine ES120

 Roller diameter (mm)

50mm

80mm

80mm

120mm

120mm

 Lenth of roller (mm)

150/160mm

200mm

200mm

450mm

450mm

 Speed ratio

1:2:4

1:3:9

1:3:9

1:3:9

1:3:9

 Output(L/h)

0.5~5

2~20

2~20

5~50

5~50

 Motor power (KW)

0.12KW

1.5KW

1.5KW

3KW

3KW

 Weight (kg)

23kg

75kg

75kg

380kg

380kg

 Overall dimension(mm)

390*250*280

720*550*550

720*550*550

1060*810*1060

1060*810*1060

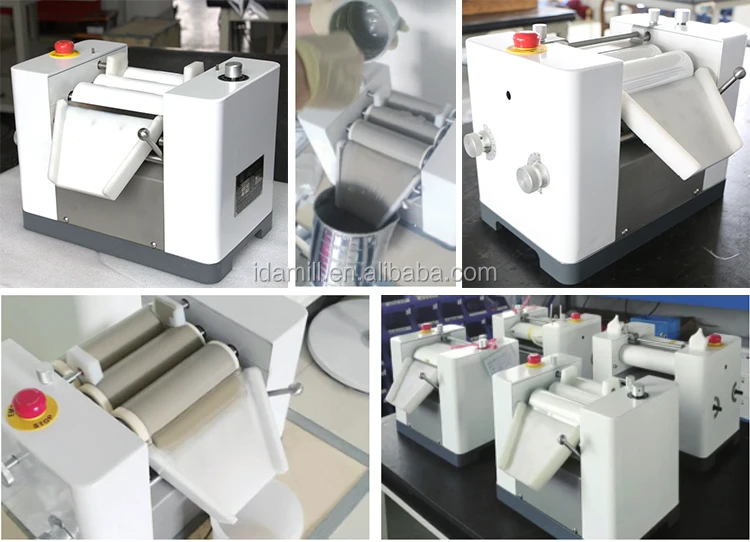

 3Detailed Images.jpg







It is widely used in CNT, High value metal paste, New Ceramic material, Electronics conductive paste,cosmetic,pigment,Solar pasty,etc.



Company Introduction
IDA machinery is a professional engaged in fluid & powder equipment Research and development , design, manufacturing, sales and service as one of the integrated high-tech enterprises. Our company's main products are dispersing equipment, mixing equipment,grinding equipment, emulsifying equipment and complete sets of production lines, to provide our customers with industrial grade high standard of professional products and quality services. Widely used in industries and fields as follows : Paint & coatings, inks, dyes and pigments, flavors and fragrances, food, papermaking chemicals, medicine, cosmetics, pesticide, resin, rubber, lithium battery materials, building materials, lubricants, adhesives, surfactants, hard material & ceramic materials, electronic chemicals, oil field chemicals. IDA machinery for various process has a variety of grinding equipment has to meet your special requirements for products and processes are different. Many domestic and foreign customers choose us because IDA machinery technology is mature and reliable and advanced, with the rest assured!
Company information.jpg
Packing&Shipping
packing and shipping

Our Service
Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.

On-Sale Service: IDA factory will manufacture the good quality machine.

After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.

All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
