Oval Liquid Soap Mixers,Stirrers,Disperser,Dissolver,Agitators,Blenders

FOB Reference Price:Get Latest Price
$800.00 - $100,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
IGF
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
IDA
Voltage:
200/380V
Application:
Liquid,Powder,Liquid with Suspended Solids,Viscous Fluid, Medicine Processing, Chemicals Processing, paint,pigment,ink,dye,magnetic material,pesticide,ceramic,paste
Certification:
CE ISO9001:2000
Product Type:
cosmetic,paint
Mixer Type:
Agitator
Additional Capabilities:
Milling
Dimension(L*W*H):
customizable
Max. Loading Capacity:
1000L
Range of Spindle Speed(r.p.m):
0 - 1450 r.p.m
Power (kW):
22 kW
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High-accuracy
Weight (KG):
1000 KG
Barrel Volume (L):
200 L
Max. Loading Volume (L):
1000 L
Motor power:
2.2-200kw
Shaft speed:
0-1450 r/min
Disc diameter:
150-600mm
Lift:
800-2800mm
pump power:
0.55-3kw
Capacity:
50-8000L
Weight:
360-3000kg
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
Oval Liquid Soap Mixers, Dispensers,Stirrers,Dispersers,Dissolvers,Agitators,Blenders shall be processed to be rustproof and moisture proof before delivery and put into wooden case.
Port
shanghai

Product Description

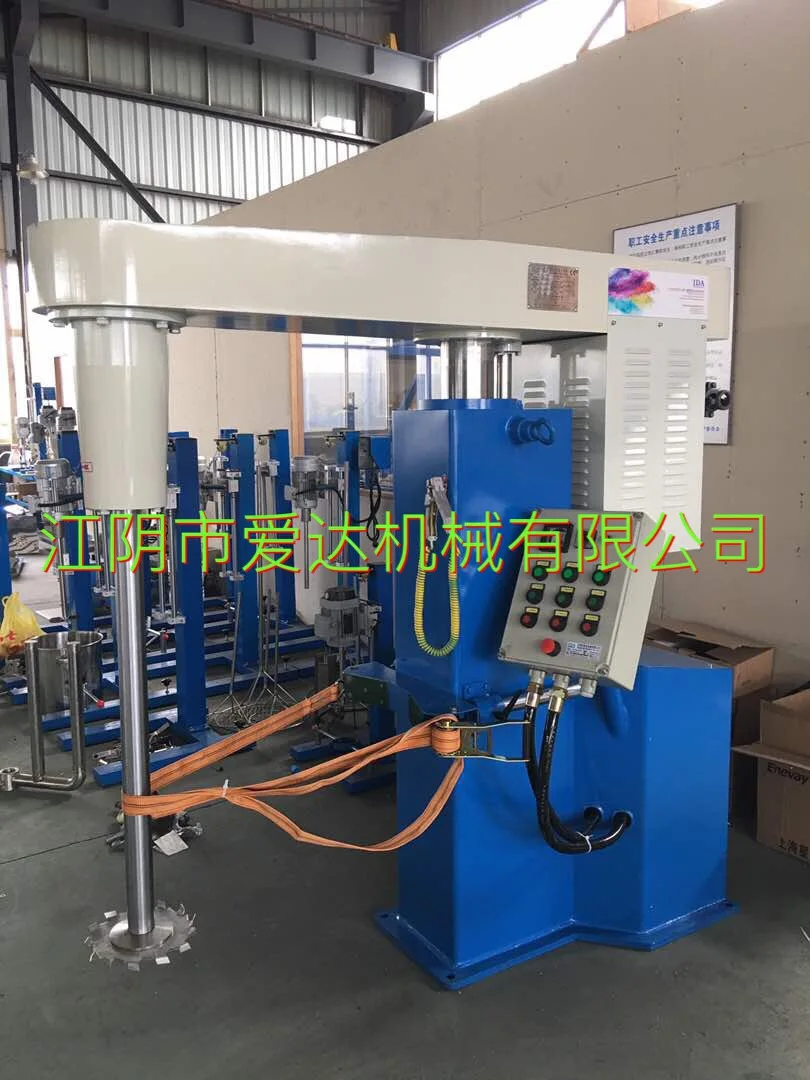

IDA-IGF Series high speed disperser is a high-efficiency equipment for mixing, dispersing widely used in the chemical products. It can mix, dissolve and disperse two or more kinds of liquid and powder material. It can both works single and together with some other sand grinder. Suitable for producing paint, ink, coating, dyestuff, paper making and so on in chemical industry, the mixers are used for wet dispersing and mixing liquid-solid material Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.

IMG_0472

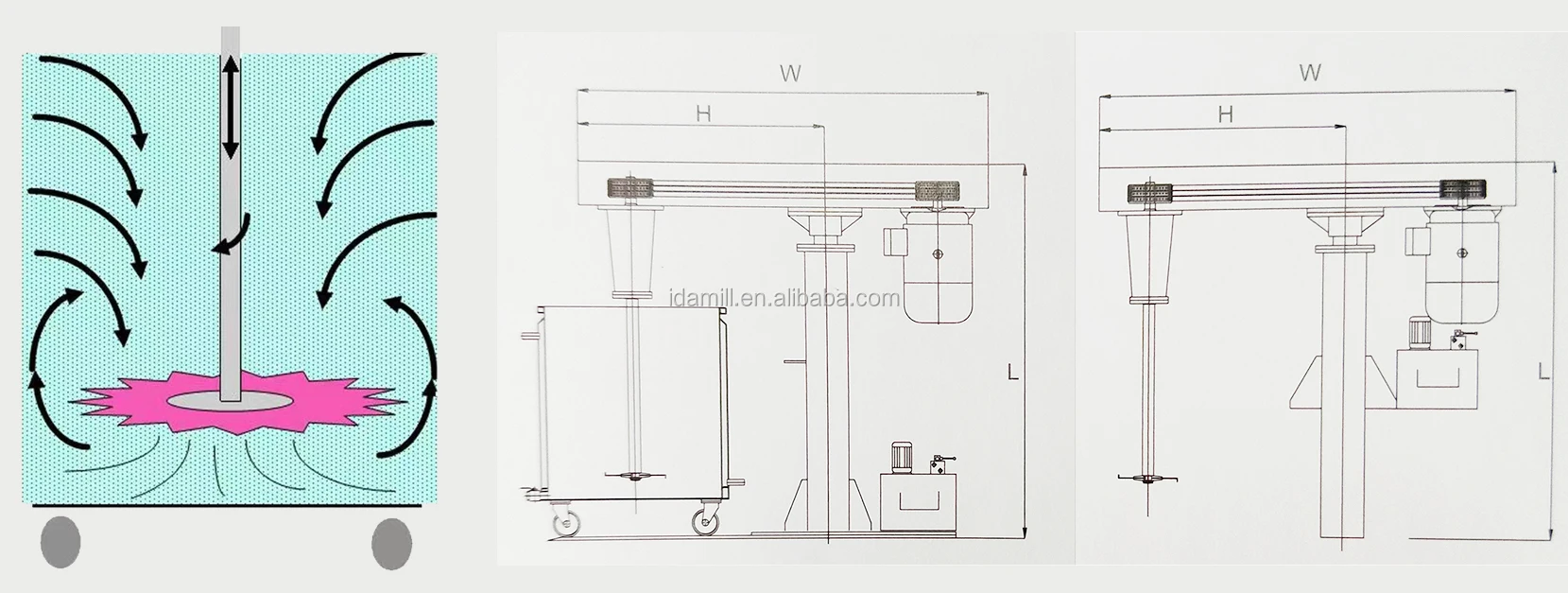

Working Principle

The disc is disk-shaped, With equidistance width up and down at the edge. Slant height at axial makes pushing action and produces non-uniform flow to material when dispersing(viscosity shearing force caused by velocity contrast). Disc runs at high and stable speed, produces shearing and crashing force to material. At normal operation, rotation of disc forms rolling circulation of material, and disc can be partial seen which indicates that max mechanical energy has input material. Material can get full circulating and stirring with the continuous rotation of disc. Granulates at material surface will drop to the circulation bottom, forming a 2.5-5 cm turbulence flow at the edge of disc. Material at this district will bear strong shearing and crashing force, highly dispersing.
1011
Main Features
1,Imported double oil seal structure to prevent oil leakage risk of lifting spindle.
2,Variable frequency speed regulation,easy to operate.
3,Hydraulic operation system,morestable.
4,Dissolve the material quickly with moderate or high speed mixing or dispersing.
5,Airtight-type cover to avoid solvent evaporation.
6,Ground standing or platform mounting and mobile or fixed tank for option.
7,Customized explosion-proof type, single shaft, double shaft, vacuum type, etc.

Product Paramenters

Detailed Images
Various types of dispersion disc(May be designed according to customer demand)

Application
Coating:Water-based coating,Solvent-based coating,Decorative coating,Latex paint;
Paint:Car paint,Finish paint,Wood paint,Industrial paint;
Ink:Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment:Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials:Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry:chocolate syrup,paste etc.
Pesticide:pesticide suspension ,EC,EW,ME
Daily Chemical Industry:cosmetics,luquid soap,shower gel,liquid detergent etc;
Biological Medicine:algae cell framentation,microbiological functional materials;
Nano Materials:metal oxide,magnetic materials,paper industry,optoelectronic industry.
application


Company Introduction
IDA machinery is a professional engaged in fluid & powder equipment Research and development , design, manufacturing, sales and service as one of the integrated high-tech enterprises. Our company's main products are dispersing equipment, mixing equipment,grinding equipment, emulsifying equipment and complete sets of production lines, to provide our customers with industrial grade high standard of professional products and quality services. Widely used in industries and fields as follows : Paint & coatings, inks, dyes and pigments, flavors and fragrances, food, papermaking chemicals, medicine, cosmetics, pesticide, resin, rubber, lithium battery materials, building materials, lubricants, adhesives, surfactants, hard material & ceramic materials, electronic chemicals, oil field chemicals. IDA machinery for various process has a variety of grinding equipment has to meet your special requirements for products and processes are different. Many domestic and foreign customers choose us because IDA machinery technology is mature and reliable and advanced, with the rest assured!
Company information.jpg
Packing&Shipping
packing and shipping


Our Service
Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.

On-Sale Service: IDA factory will manufacture the good quality machine.

After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.

All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
